Open-source NGFW for Debian 13 and Ubuntu 26.04 LTS

A firewallthat showsits work.

Furta NGFW turns a Linux box into a next-generation firewall: zone policy compiled to nftables, Suricata inspection, site-to-site tunnels and the Furta VPN with fresh MFA on every connection. Every decision it makes, you can trace.

Follow a packet Install the beta

Pre-release. Beta 0.4.0 is out for lab and preview hosts.

A laptop opens a website Forwarded

Follow a packet

Ten checkpoints, in the order the box runs them.

TCP 192.168.10.23:40000 → 198.51.100.7:443 LAN → WAN

Anti-spoofing pre_raw · prerouting · raw −300 LAN is strict: the source routes back through lan0.
Connection tracking conntrack · lookup A new flow.
Destination NAT pre_dnat · prerouting · nat −100 No destination NAT rule matches.
Routing routing · decision Out through ppp-wan, the PPPoE uplink.
MSS clamp fwd_mangle · forward · mangle −150 MSS clamped to fit the PPPoE link.
Furta VPN ACL furta/forward · forward · filter 0 Neither side is the VPN interface.
Zone policy zone_forward · forward · filter 10 LAN → WAN, policy 20 accepts. The flow's mark remembers the policy and profile.
Suricata inspection ips_dispatch · forward · filter 20 Profile lan-outbound (fail-closed): Suricata lets it through.
Source NAT post_snat · postrouting · nat 100 Masqueraded to the WAN address.
Leaves the box egress · out

Forwarded policy 20 · counter policy_20

Built on

nftables
Open vSwitch
systemd-networkd
Kea DHCP
Unbound
Suricata
strongSwan
WireGuard
Furta
Docker Compose

Changing the firewall

Nothing sticks until you confirm it.

A change that could cut your own connection is applied as one transaction and waits for you. Confirm it from the session it didn’t break, or the box puts the last good configuration back.

Validate. Schema, meaning, capabilities, dependencies, and whether you can still reach the box afterwards.
Apply as one transaction. Interfaces, routes, nftables and services move together.
Confirm within the window. 120 seconds by default for changes that touch connectivity.
Or roll back. No confirmation, a failed health check, an agent restart or a reboot all restore the last good configuration.

SSH and the admin UI stay reachable through a management anchor the policy can’t remove. If you still lock yourself out, furta-ngfwctl on the console repairs it.

Try it

Confirm revision 8 within

The clock runs four times faster here. Confirm, or let it run out.

Revision 7: committed · last good
Revision 8: awaiting confirmation

What’s in the box

One box, the whole edge.

Grouped the way the admin UI is. The tag on each line is the build stage that delivers it, coloured by where that stage stands.

Network

Interfaces, VLANs, PPPoE and routing, owned by a host agent with scoped nftables tables S03
Open vSwitch bridges: one L2 segment per zone, so traffic between zones is always routed through policy S02

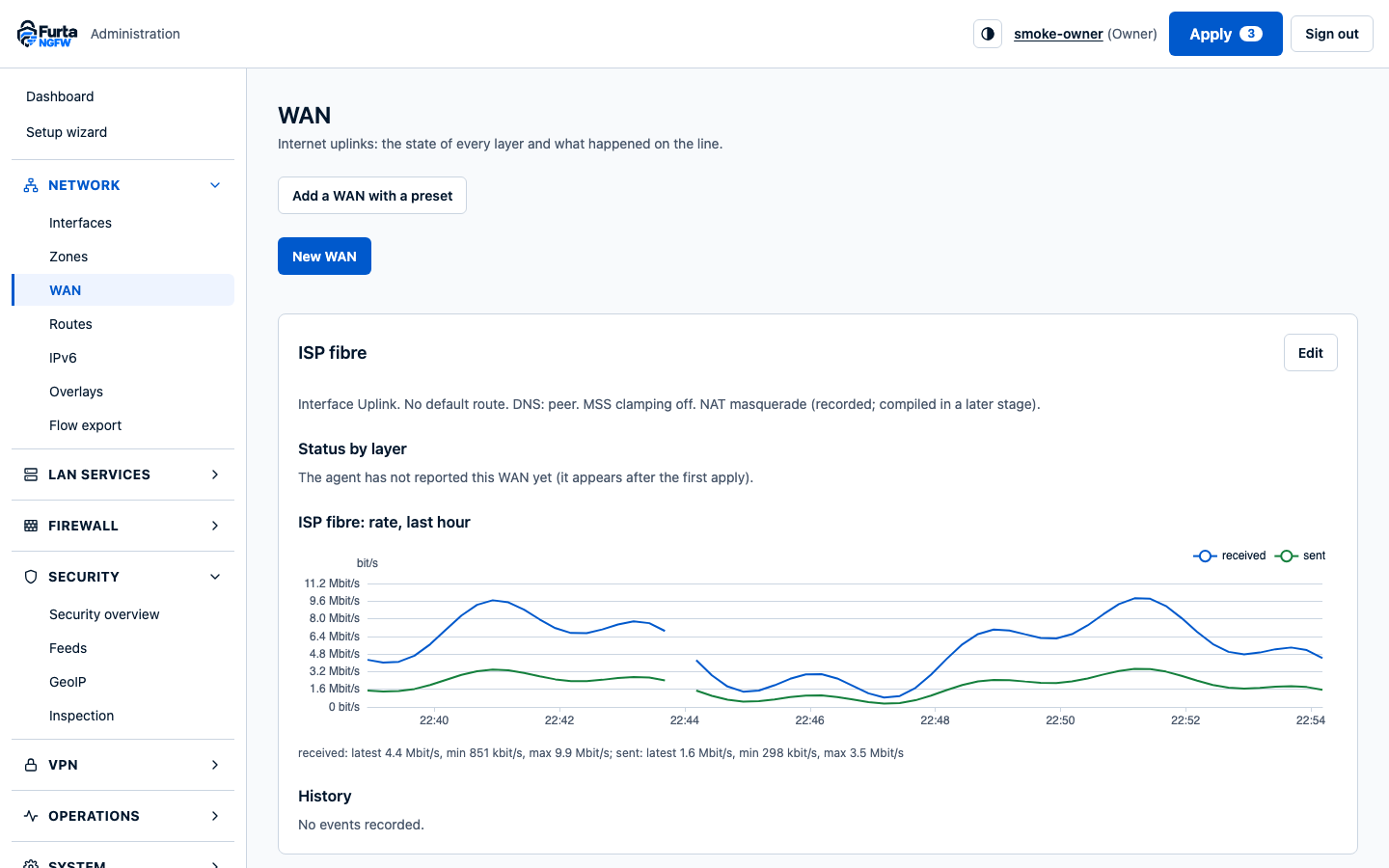

The WAN page: the ISP fibre uplink, its status by layer and a traffic chart for the last hour.

Firewall

Zone-pair policy with objects and services, compiled to nftables S04
Destination NAT, source NAT and hairpin, plus policy simulation for any packet S04
Policies by zone pair or in sequence, with counters, clone and bulk actions S11

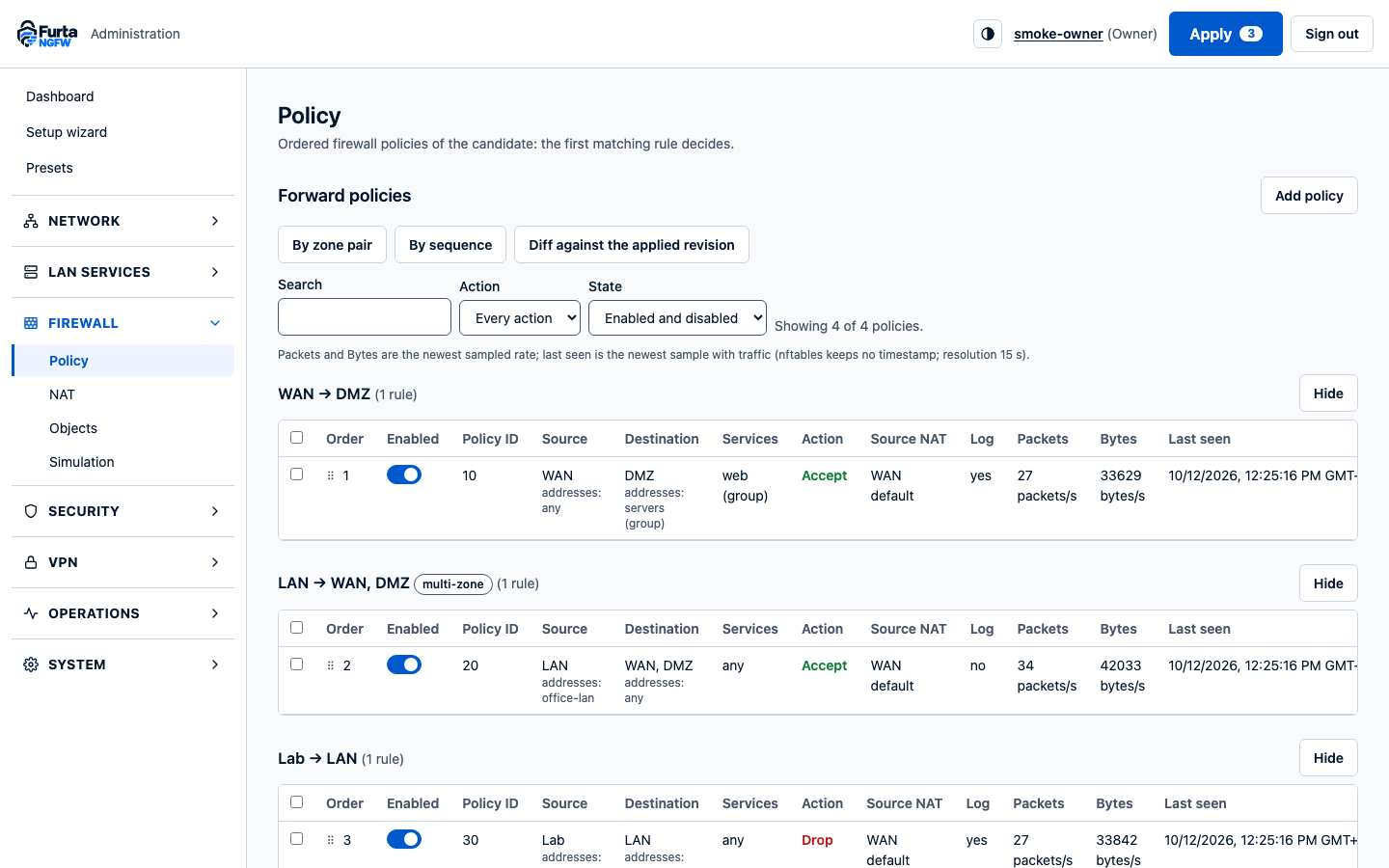

Forward policies grouped by zone pair (WAN to DMZ, LAN to WAN and DMZ, Lab to LAN) with packet and byte counters and the last time each rule matched.

LAN services

Kea DHCP, Unbound DNS, router advertisements and a setup wizard S05

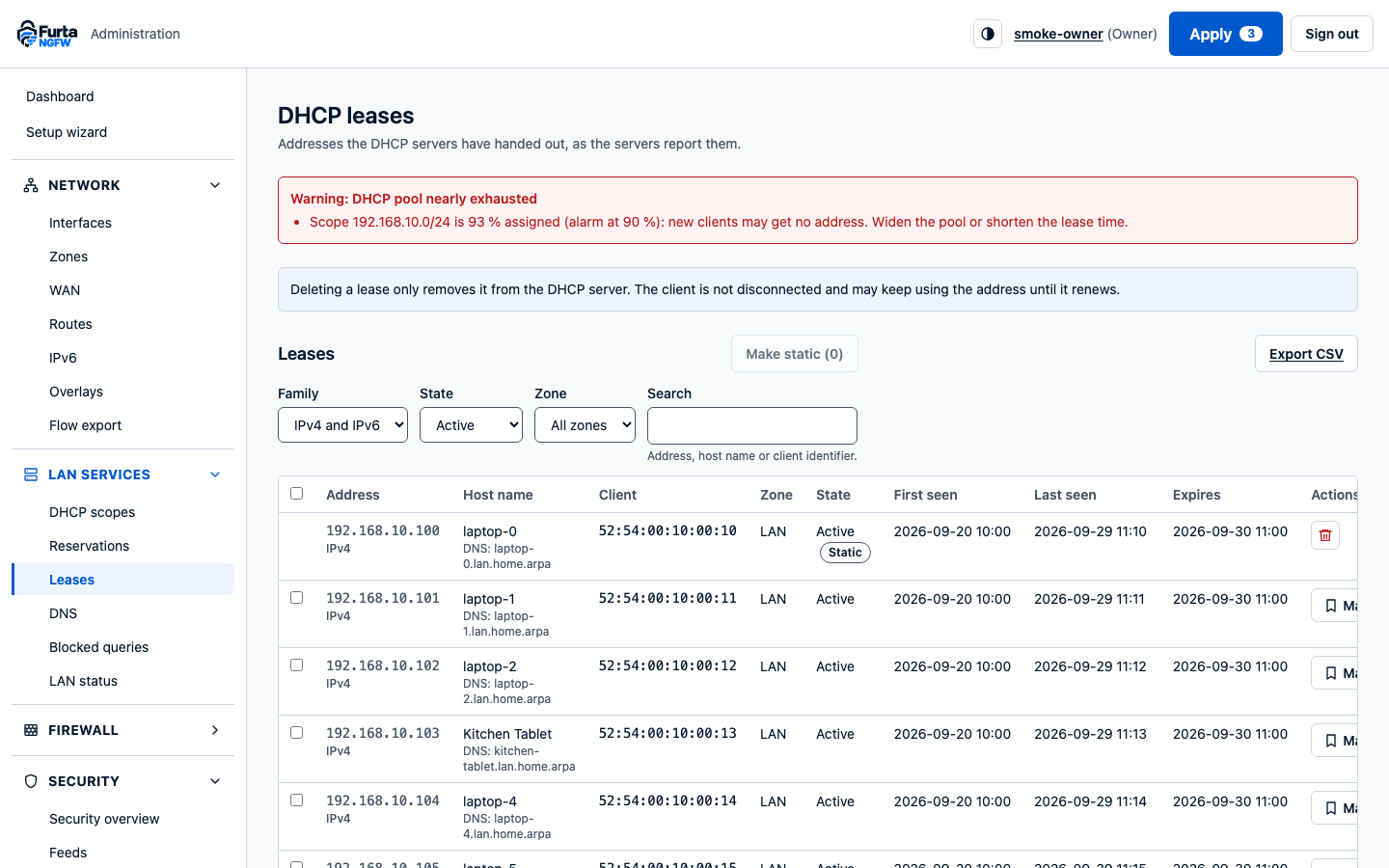

DHCP leases with a warning that the 192.168.10.0/24 pool is 93 % assigned.

Guided setup

A seven-step setup wizard: WAN, LAN, segments, services, protection, review, then checks that run after the apply S11
Presets for a home network, a guest network or an office with a DMZ, shown as a diff before anything is applied S11
Help in a side drawer for every page and field S11

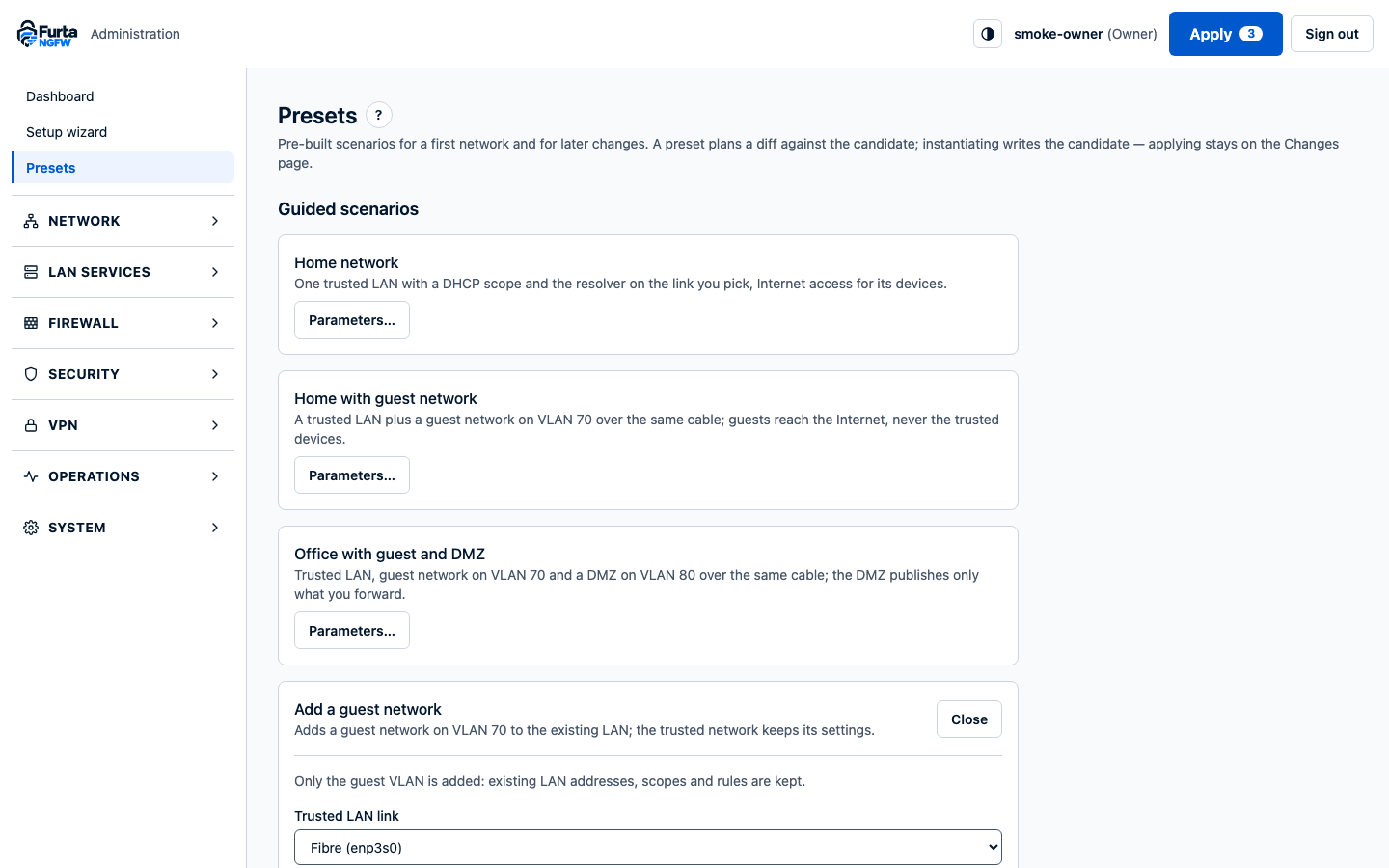

Presets: guided scenarios such as home network, home with guest network, and office with guest and DMZ, with the changes a preset would make.

VPN

Furta remote access: fresh MFA on every connection, with zone policy on top of Furta's ACL S06
Site-to-site with strongSwan IKEv2 (policy- and route-based, FortiGate and Firepower presets) or WireGuard S08

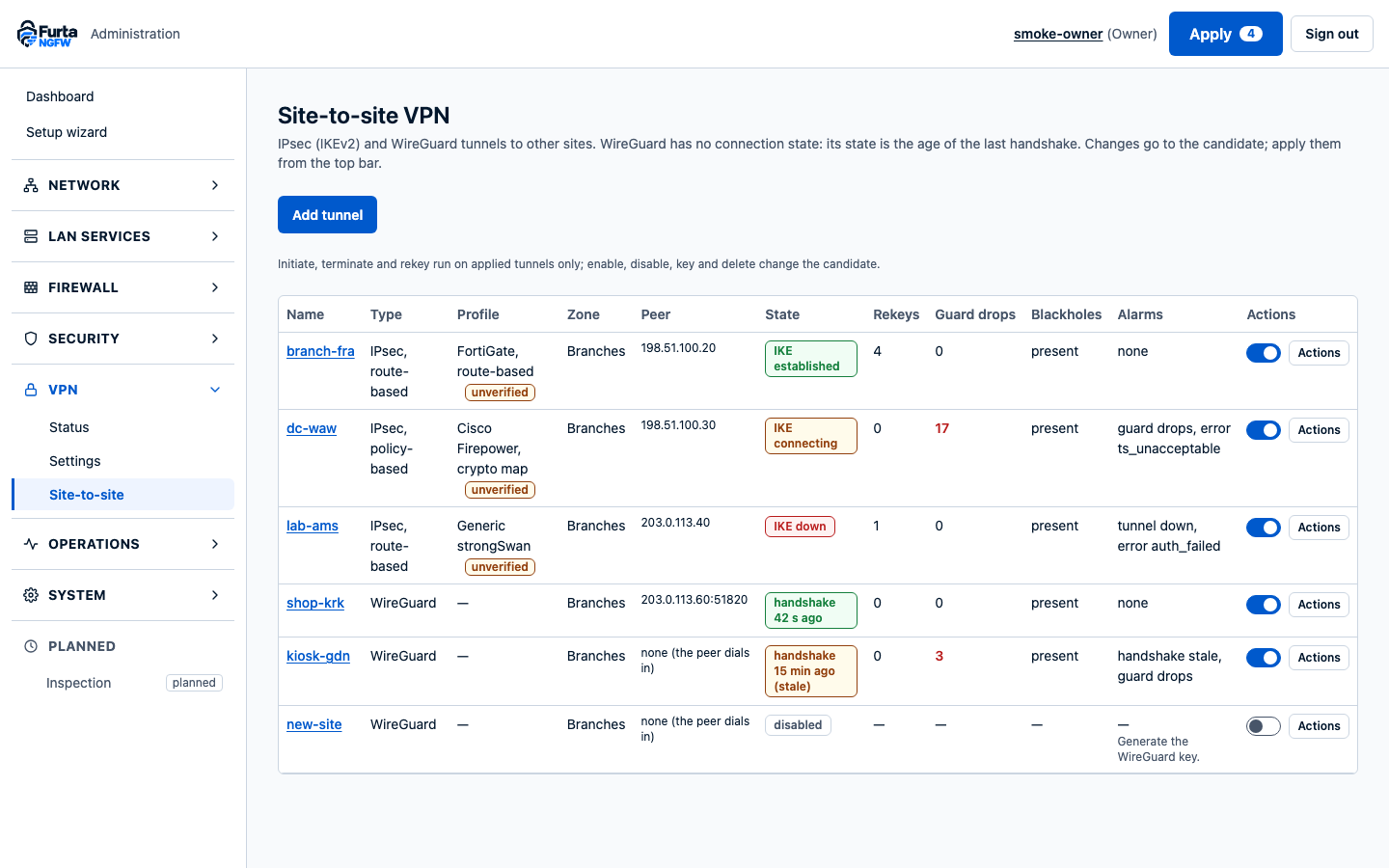

Site-to-site tunnels: IPsec to FortiGate and Cisco peers and WireGuard, with state, rekeys and guard drops.

Security

DNS filtering from HaGeZi and URLhaus, GeoIP objects, dynamic sets with bounded memory S07
Suricata IDS or IPS over NFQUEUE, profiles per policy, rule sources and datasets, updates with validation and rollback S10

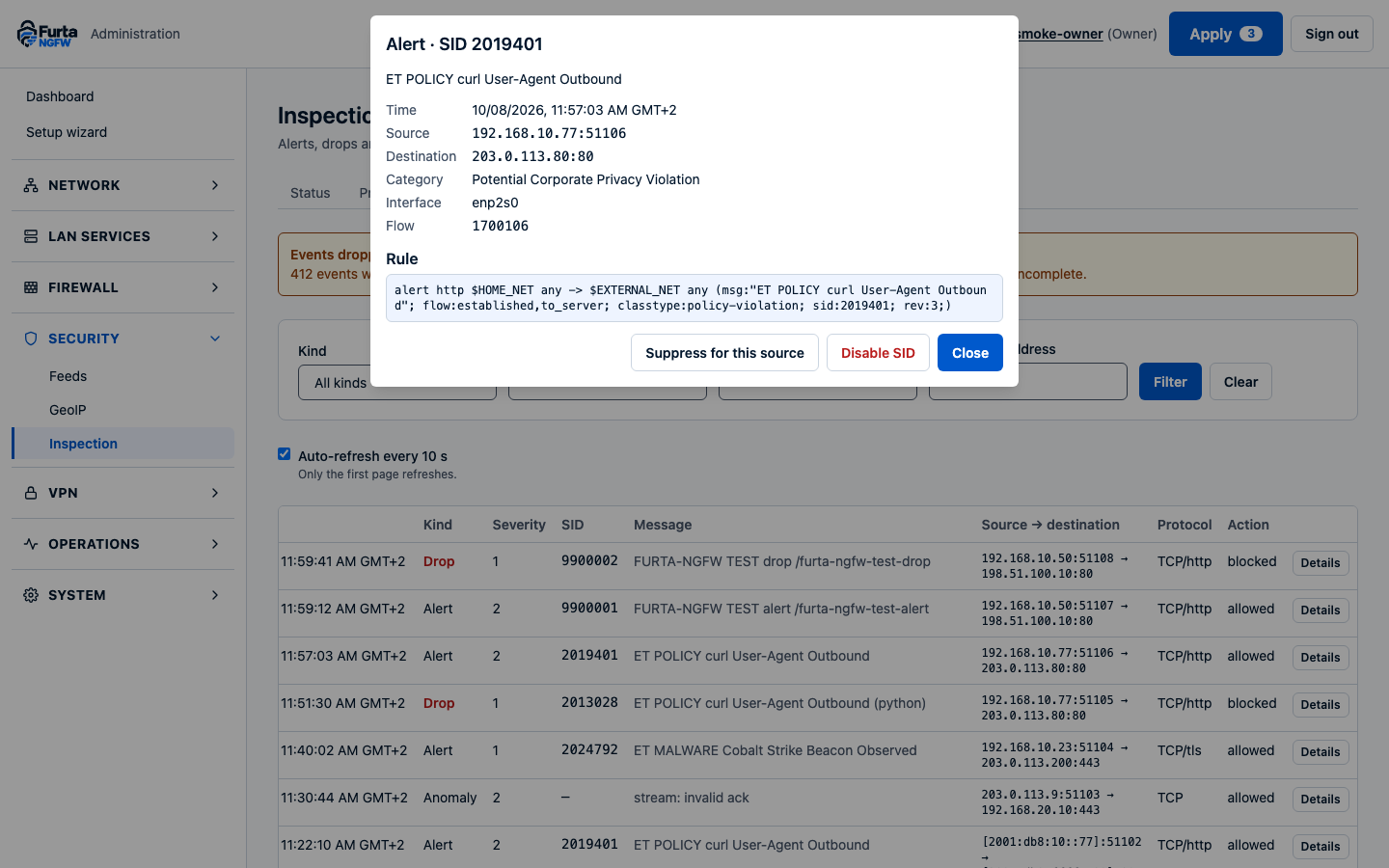

An inspection alert opened from the event list: SID 2019401, its source, destination, flow and rule text.

Overlays

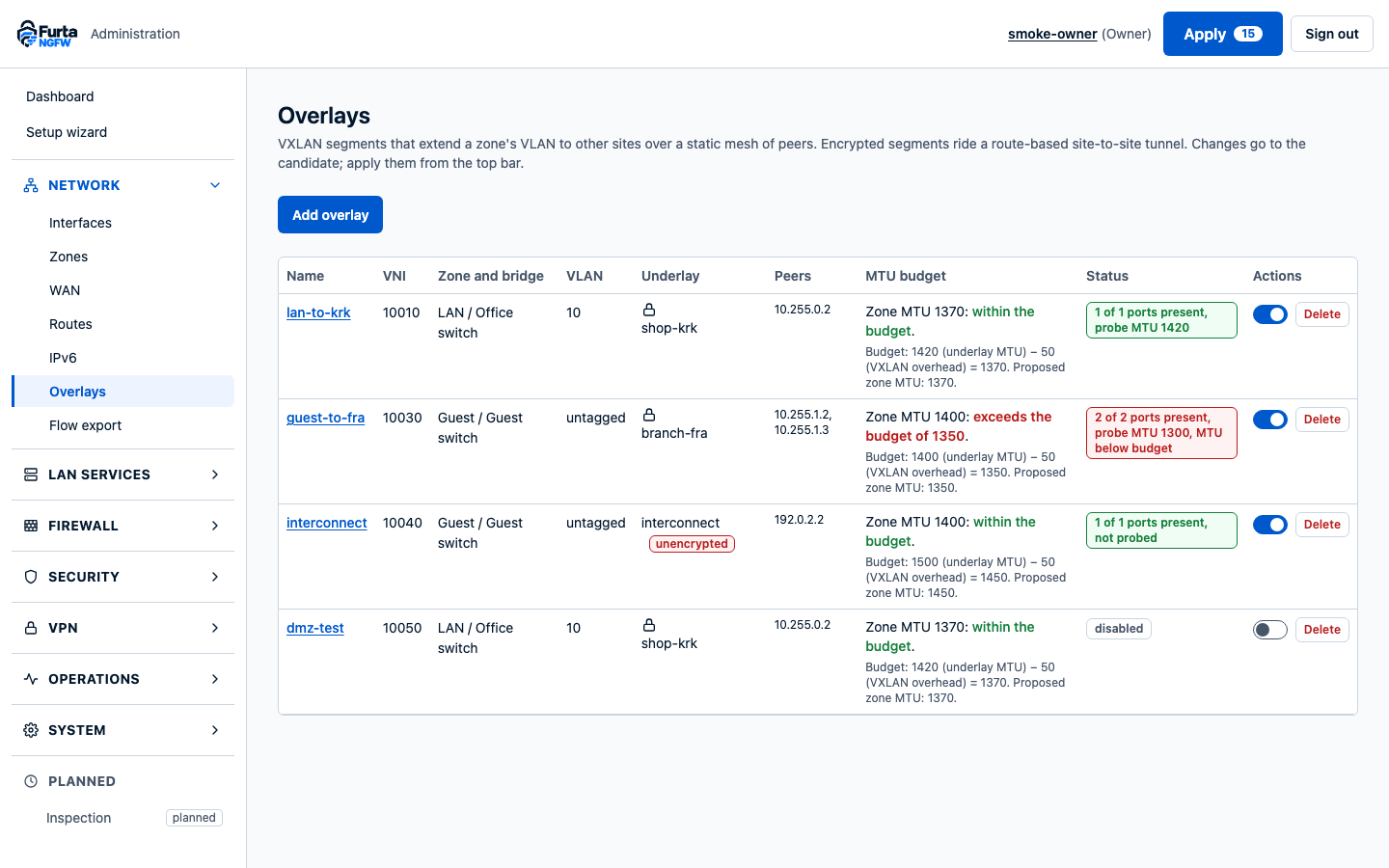

VXLAN and GENEVE segments over Open vSwitch, with drift detection, an MTU budget and flow export S09

Operations

Roles, audit log, transactional apply with confirm-or-rollback and a local recovery CLI S02
A live topology map of uplinks, zones, bridges, tunnels and segments S11
Dashboards, sessions, alarms and Prometheus /metrics; diagnostics with TCP connect, conntrack, neighbours and bounded packet capture S11

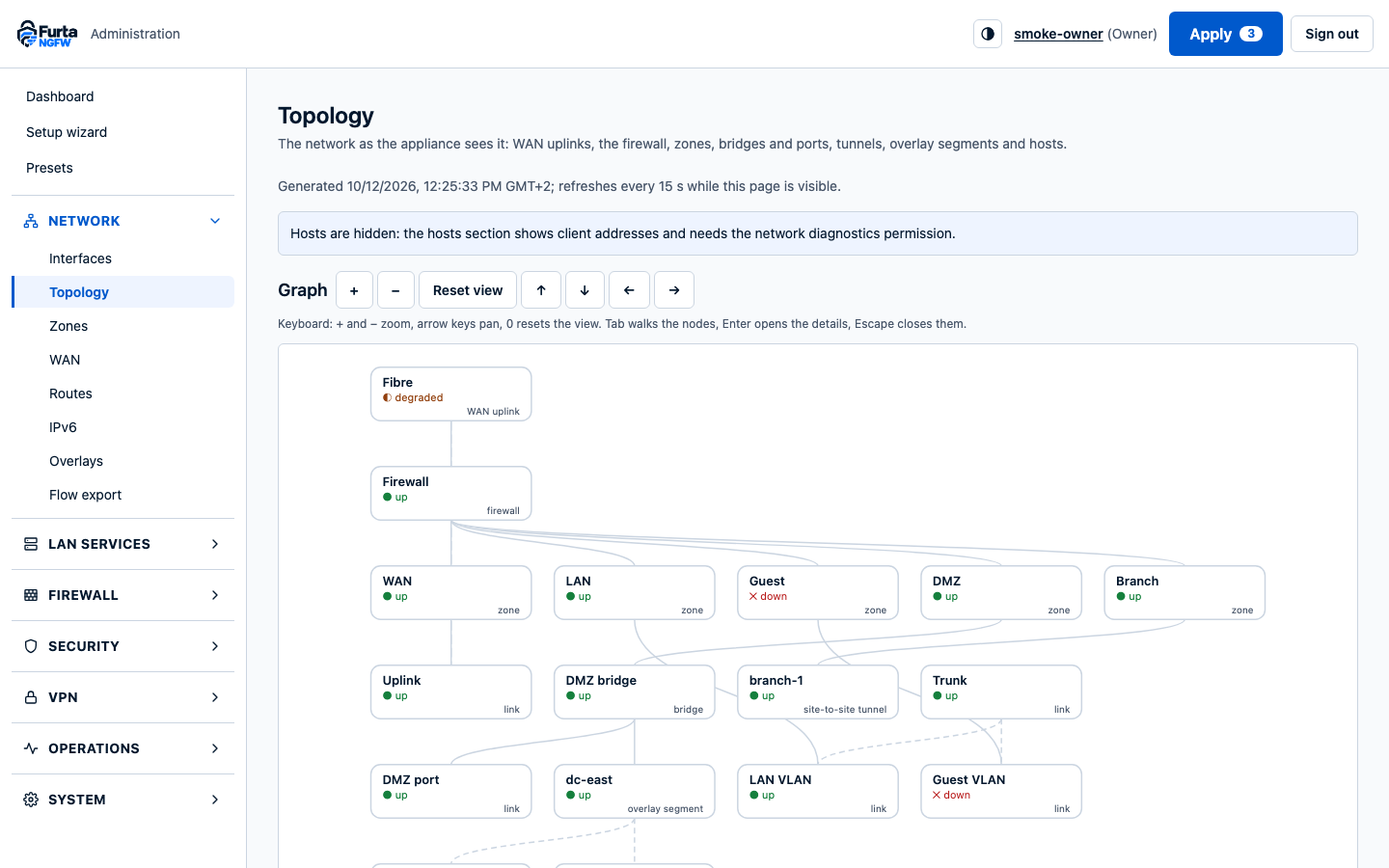

The topology map: the fibre uplink, the firewall, WAN, LAN, guest, DMZ and branch zones, with their bridges, VLANs, tunnels and overlay segments.

The admin UI

Ask first, then apply.

Simulate any packet against the configuration you are about to apply, then watch the box carry it out.

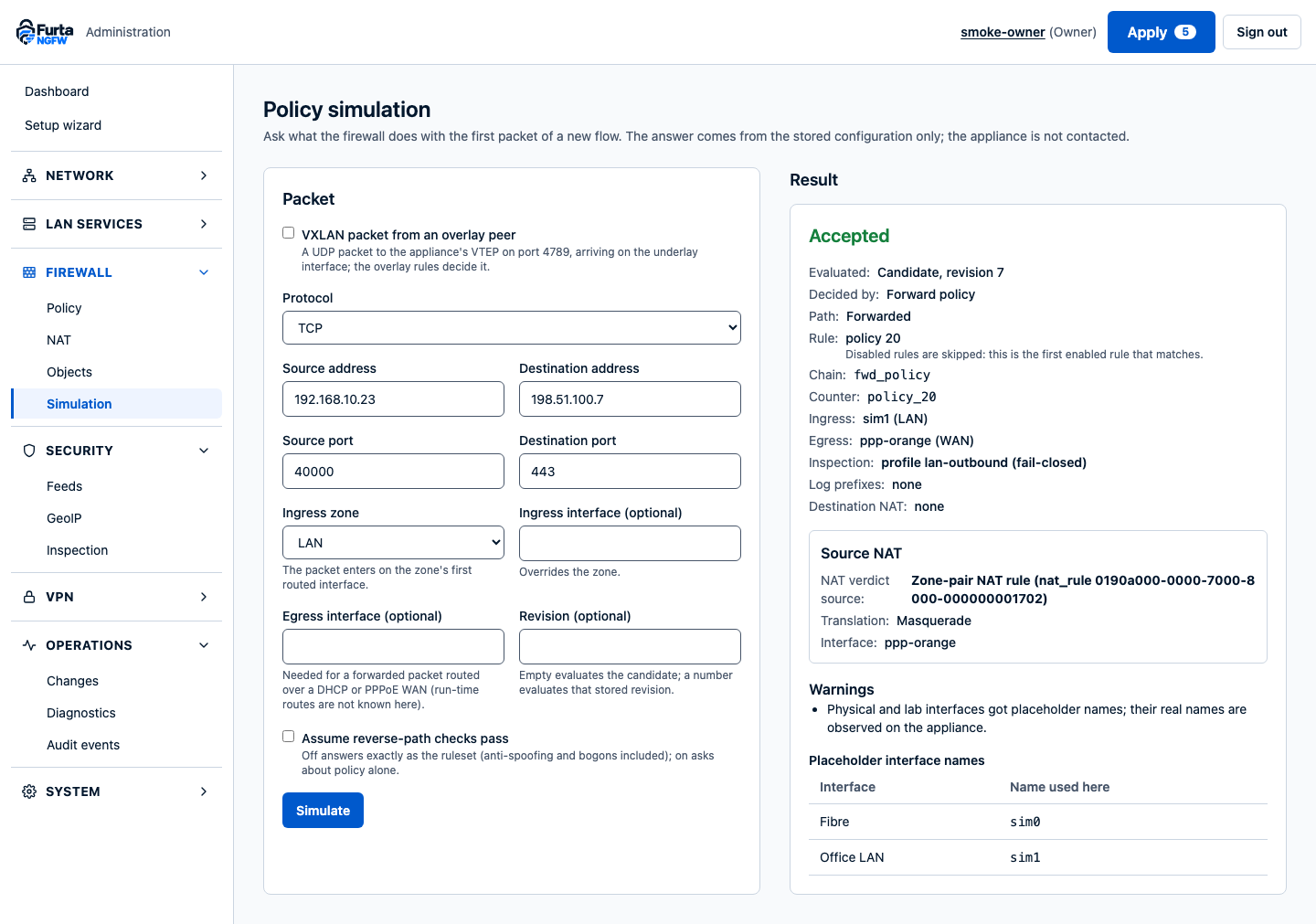

Policy simulation answers from the stored configuration, before anything is applied.

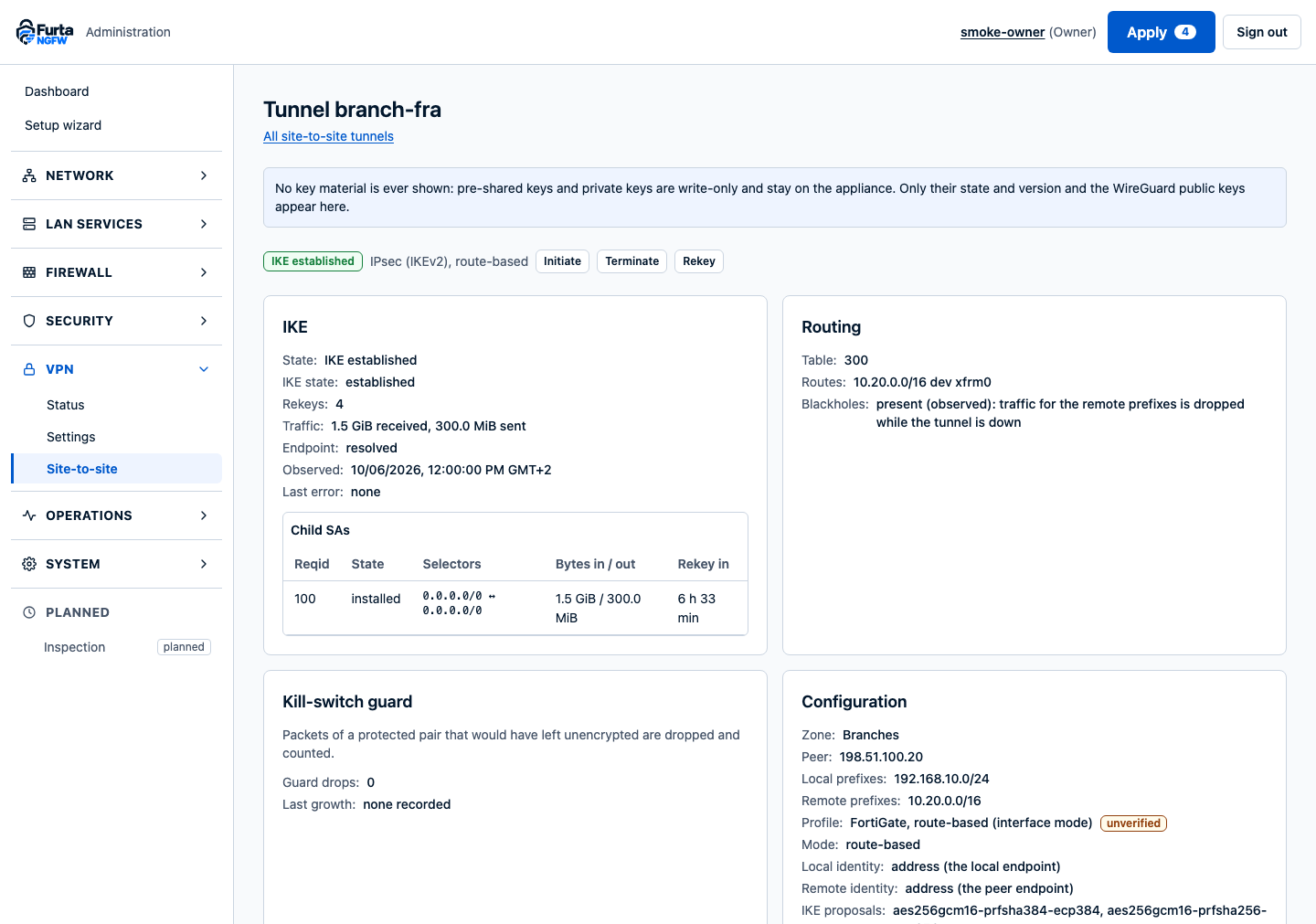

A route-based IPsec tunnel to a FortiGate peer: IKE established, child SAs, routing table and kill-switch guard. — Site-to-site tunnels show their IKE state, routes and kill-switch drops. Keys are write-only.

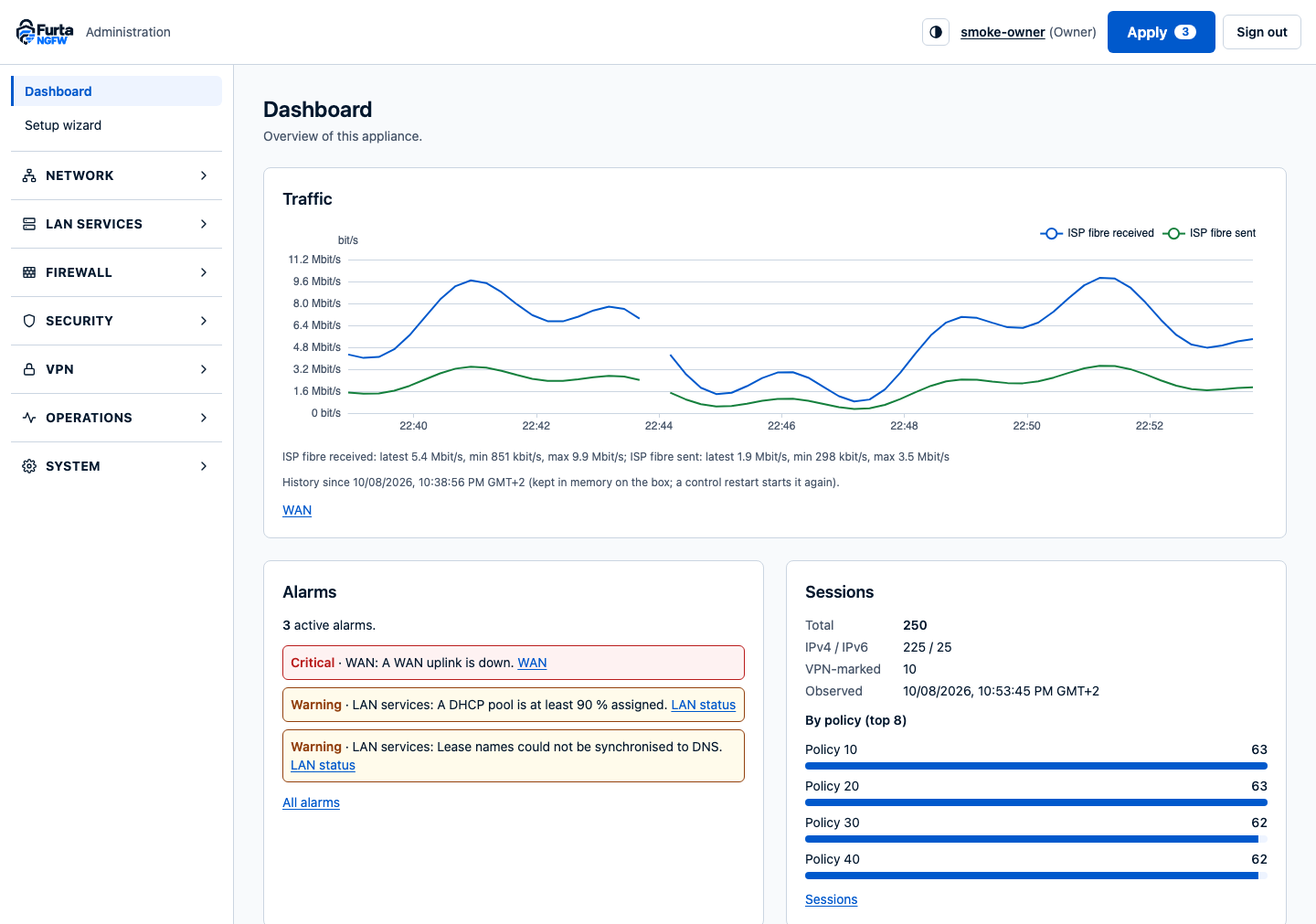

The dashboard in the light theme: WAN traffic chart, alarms and sessions. — Light, dark, or following your system. Drag to compare.

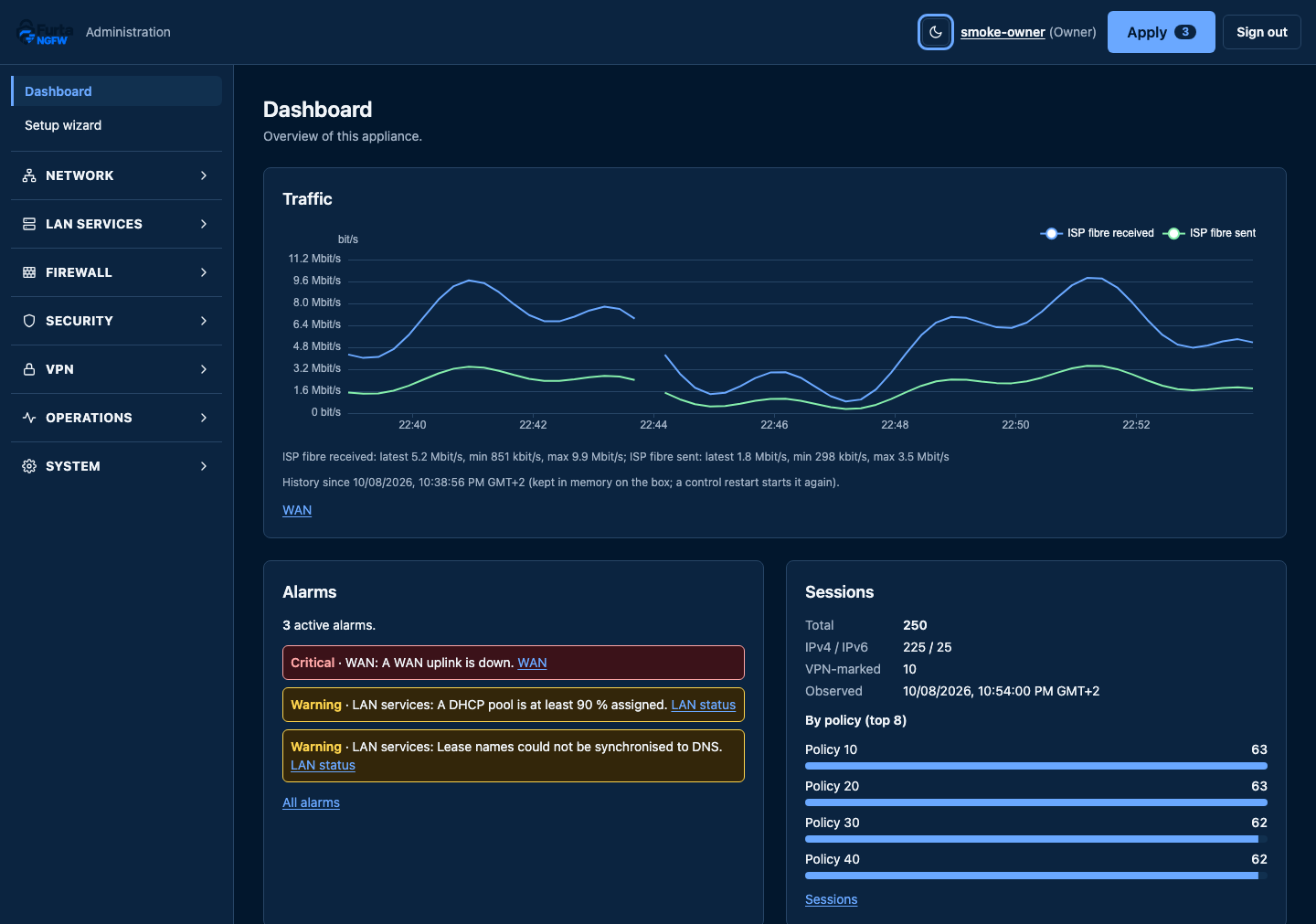

The same dashboard in the dark theme. — Light, dark, or following your system. Drag to compare.

Where it stands

Built one course at a time.

Fourteen stages, each closed by a lab gate on both operating systems and then accepted. This is the honest state, not a roadmap promise.

S00 Discovery and contracts Accepted

S01 Foundation and CI Accepted

S02 Transactional host core Accepted

S03 Interfaces and PPPoE Accepted

S04 nftables policy and NAT Accepted

S05 LAN services Accepted

S06 Furta integration Accepted

S07 Security sources Passed its lab gate

S08 Site-to-site VPN Accepted

S09 SDN overlays Accepted

S10 Suricata inspection Accepted

S11 Complete UX Accepted

S12 Hardening and adversarial QA In progress

S13 Release and operations Planned

Accepted
Passed its lab gate
In progress
Planned

Beta 0.4.0 · stages S01–S11

Put it on a spare box.

The beta is an offline bundle for a fresh Debian 13 or Ubuntu 26.04 LTS host, amd64 or arm64, with two NICs (or one NIC and a VLAN-capable switch). It downloads nothing while it installs. Coming from the 0.2 beta? Copy the new bundle over and re-run the installer with the same management address.

Pre-release. For lab and preview hosts, not production. Hardening (S12) is under way. Packages are unsigned; signing, an apt repository and SBOMs come with the release stage (S13).

The source, the beta bundle and the install guide will be published on GitHub.

admin@ngfw: ~

# Mask the stock nftables service: its start and stop flush the whole ruleset.
sudo systemctl mask nftables.service
# Optional: site-to-site IPsec and Suricata come from your distribution (suricata 8.0: trixie-backports on Debian 13).
sudo apt install charon-systemd strongswan-swanctl suricata
# Check the download. The beta is unsigned; the checksums are the only integrity check.
sha256sum -c --ignore-missing SHA256SUMS
furta-ngfw-offline_0.4.0-beta.2_linux_amd64.tar: OK
# Unpack the bundle for your architecture.
tar -xf furta-ngfw-offline_0.4.0-beta.2_linux_amd64.tar && cd furta-ngfw-0.4.0-beta.2
# Install. SSH and the admin UI open on the management interface, from its subnet only.
sudo ./install.sh --mgmt-ip 192.0.2.10 --with-furta-gateway
